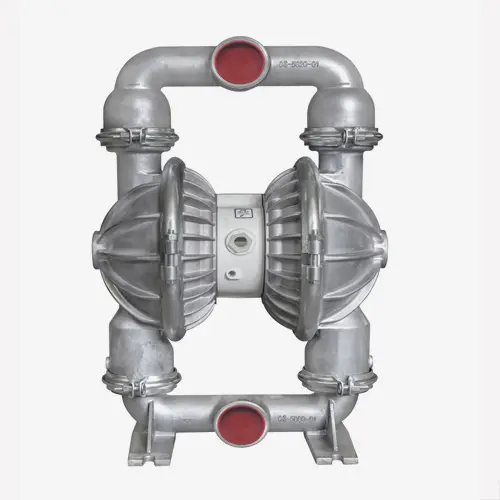

RB600 2" Metallic AODD Pump
Compatible with WILDEN P8
Description
RB600 clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool.
| Ratio: | 1:1 |
| Maximum Flow gpm (lpm): | 165 (623) |
| Displacement per cycle gal (l): | 0.7 (2.6) |
| Air Inlet (Female): | 1/2 FNPT |
| Fluid Inlet/Outlet: | 2" NPT/BSP; 2" NPT/BSP |
| Max. operating pressure psi (bar): | 125-psi (8.6-bar) |
| Suspended solids max. dia in (mm): | 1/4” (6.4 mm) |
| Weight (kg): | Aluminum: 32 / Cast Iron: 47 / Stainless Steel: 51 |
| Maximum dry suction lift ft (m): | 22.7 (6.9) |
| Muffler: | Included |
RB600 clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool.
| Pump size: 2" |
| Pump material: Metallic |
