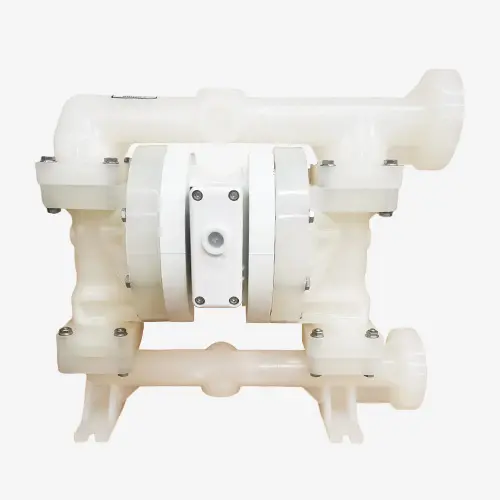

RB400 1" Non-Metallic Diaphragm Pump
Compatibility
Wilden P200
| Ratio: | 1:1 |
| Maximum Flow gpm (lpm): | 58 (220) |
| Displacement per cycle gal (l): | .09 (.32) |
| Air Inlet (Female): | 1/4" FNPT |
| Fluid Inlet/Outlet: | 1"DIN/ANSI (Flanged) |
| Max. operating pressure psi (bar): | 125-psi (8.6-bar) |
| Suspended solids max. dia in (mm): | 3/16-in. (4.76-mm) |
| Weight (kg): | Polypropylene 10 / Kynar PVDF 15 |
| Maximum dry suction lift ft (m): | 11.9 (3.6) |
| Muffler: | Included |
RB400 PP Non-Metallic Diaphragm Pump combines maximum performance and efficiency with superior containment. It offers improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.
