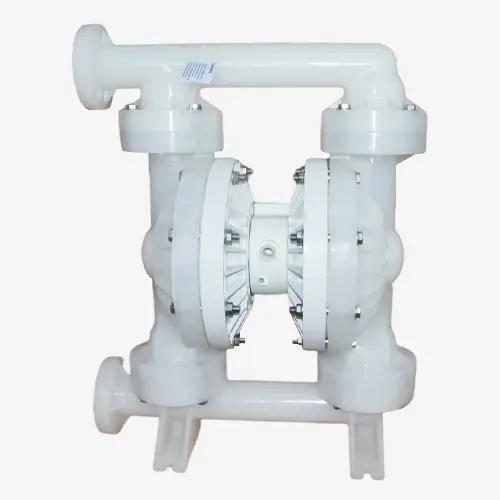

RB300 1 1/2" Non-Metallic Diaphragm Pump
Compatible with:
Wilden P400
PP/WIL-FLEX/WIL-FLEX
| Ratio: | 1:1 |
| Maximum Flow gpm (lpm): | 120 (454) |
| Displacement per cycle gal (l): | .33 (1.25) |
| Air Inlet (Female): | 1/2" FNPT |
| Fluid Inlet/Outlet: | 1-1/2" DIN/ANSI (Flanged) |
| Max. operating pressure psi (bar): | 125-psi (8.6-bar) |
| Suspended solids max. dia in (mm): | 1/4-inch (6.35-mm) |
| Weight (kg): | Polypropylene 19 / Kynar PVDF27 |
| Maximum dry suction lift ft (m): | 18.2 (5.5) |
| Muffler: | Included |
RB300 Non-Metallic Diaphragm Pump combines maximum performance and efficiency with superior containment. It offers improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.
| Pump size: 1 1/2" |
| Pump material: Non Metallic |
