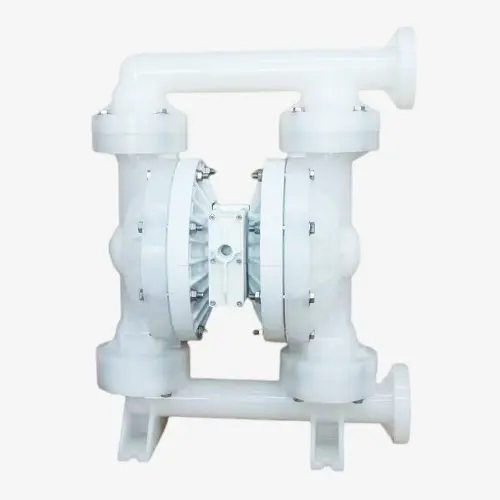

RB200 2" Non-Metallic Diaphragm Pump
Compatible with:
Wilden P800
PP/PTFE/PTFE
| Ratio: | 1:1 |
| Maximum Flow gpm (lpm): | 165 (624 ) |
| Displacement per cycle gal (l): | 0.73 (2.75 ) |
| Air Inlet (Female): | 1/2" FNPT |
| Fluid Inlet/Outlet: | 2" DIN/ANSI (Flanged) |
| Max. operating pressure psi (bar): | 125-psi (8.6-bar) |
| Suspended solids max. dia in (mm): | 1/4-in. 6.4-mm) |
| Weight (kg): | Polypropylene 32 / Kynar PVDF 45 |
| Maximum dry suction lift ft (m): | 20.4 (6.23) |
| Muffler: | Included |
RB200 Non-Metallic Diaphragm Pump combines maximum performance and efficiency with superior containment. It offers improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.
