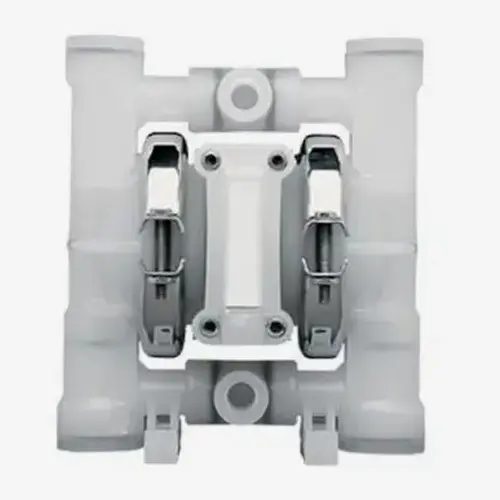

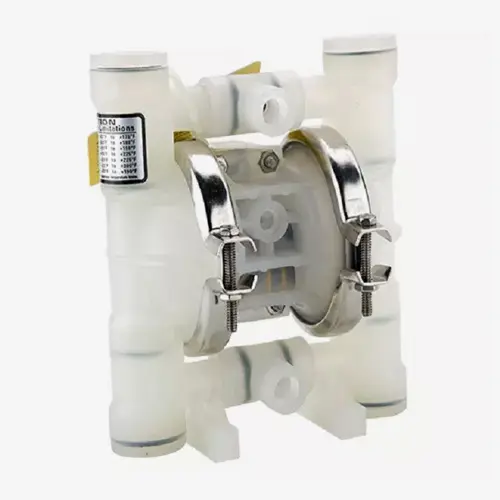

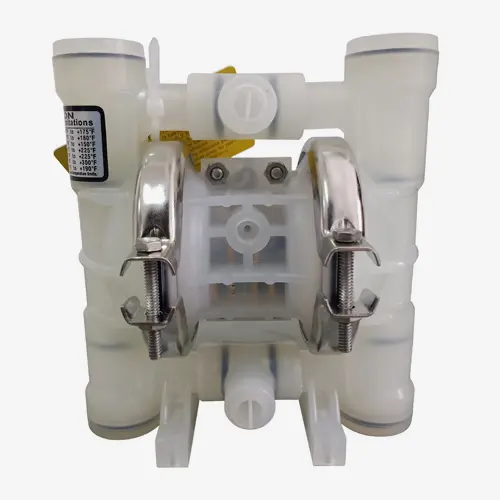

RB100 1/4" Non-Metallic Diaphragm Pump
Compatible with: Wilden P1
PP/WIL-FLEX/PTFE
1/4" Non-Metallic Diaphragm Pump FNPT threaded inlet/discharge liquid connections and Rotatable inlet and discharge for flexibility
| Ratio: | 1:1 |
| Maximum Flow gpm (lpm): | 4.8 (18.1) |
| Displacement per cycle gal (l): | .005 (.02) |
| Air Inlet (Female): | 1/8" FNPT |
| Fluid Inlet/Outlet: | 1/4" NPT (Threaded) |
| Max. operating pressure psi (bar): | 125-psi (8.6-bar) |
| Suspended solids max. dia in (mm): | 1/64-in. (0.4-mm) |
| Weight (kg): | Polypropylene 1.4 / Kynar PVDF 1.4 |
| Maximum dry suction lift ft (m): | 9 (2.74) |
| Muffler: | Included |
