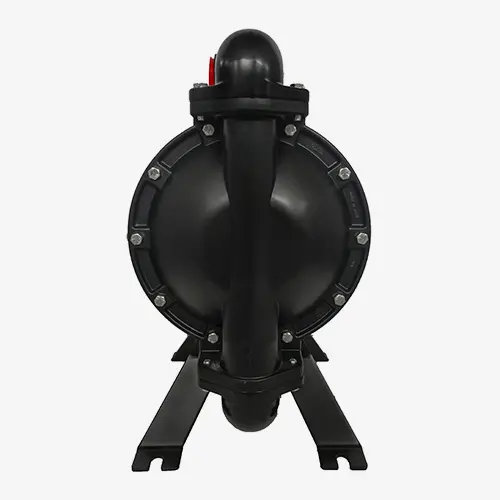

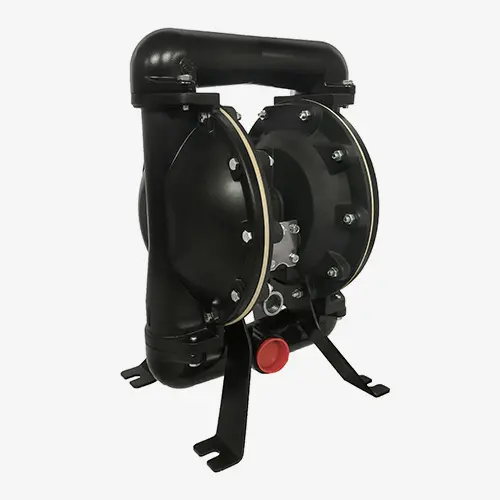

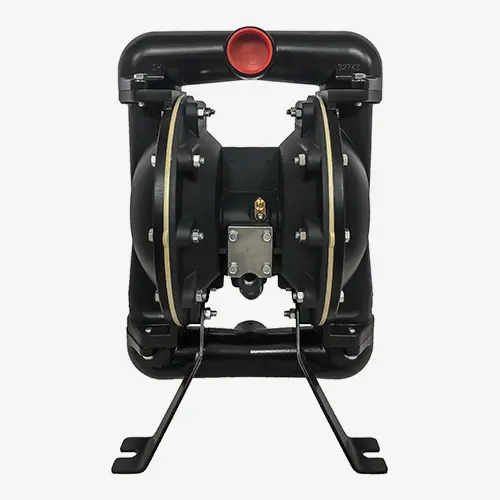

RA030 1-1/2'' Metallic (Aluminum & Cast Iron) Diaphragm Pump
Compatible with:
Wilden P400
PP/WIL-FLEX/WIL-FLEX
| Ratio: | 1:1 |
| Maximum Flow gpm (lpm): | 90 (340.7) |
| Displacement per cycle gal (l): | .64 (2.42) |
| Air Inlet (Female): | 1/2-14 NPTF-1 |
| Fluid Inlet/Outlet: | 1-1/2 11-1/2 N.P.T.F. - 1 Rp 1-1/2 (1-1/2 - 11 BSP parallel) |
| Max. operating pressure psi (bar): | 120-psi (8.3-bar) |
| Suspended solids max. dia in (mm): | 1/4-inch (6.4-mm) |
| Weight (kg): | Aluminum: 23.4 / Stainless Steel: 38.3 / Cast iron: 36.1 |
| Maximum dry suction lift ft (m): | ft (m) 19 (5.8) |
| Muffler: | Included |
A Series 1-1/2" metallic diaphragm pumps achieve flow rates of up to 90 GPM (340.7 LPM) and offer a wide array of material and porting configurations. These pumps are often used for transfer, filling, recirculation and batching in Paint, Oil & Gas, Mining, Construction, Chemical and Petrochemical markets.
Accessories
- A637118-C Air Section Service Kit
- A637124-XX Fluid Section Service Kit
Pump Casing Materials
- Aluminum
- Cast Iron
Diaphragm Materials
- Viton
- PTFE w/ Santoprene backer
- Hytrel
- Santoprene
- Nitrile
- Neoprene
- E.P.R.
| Pump size: 1 1/2 |
| Pump material: Metallic |
